Imaging

Light Microscopy

Light microscopy, also known as light optical microscopy (LOM), is a fast and easy to use technique for imaging up to 1000x magnification. The technique is widely used for validation of various manufacturing processes such as welding, heat treatments, and cold working methods. Imaging using LOM is mostly used on polished and etched specimens to study the microstructure of metals.

Light microscopy plays an important role in failure investigations to ensure that a material meets certain specified criteria. Materials characterisation using LOM is typically used for phase identification but may also be used to reveal possible material deviations such as undesired deformation, cracks, pores and/or slag inclusions.

Typical applications:

  • Microstructural studies and grain size measurements
  • Plating and coating thickness
  • Crack characteristics
  • Welding defects

Leica DRME Light Microscope

Light Microscopy
Microstructure of weld in copper
Light Microscopy
Microstructure of ductile iron showing graphite nodules sorrounded by ferrite in a pearlite matrix
Light Microscopy
Crack in G-X75 CrNiSi 23-2-1
Light Microscopy

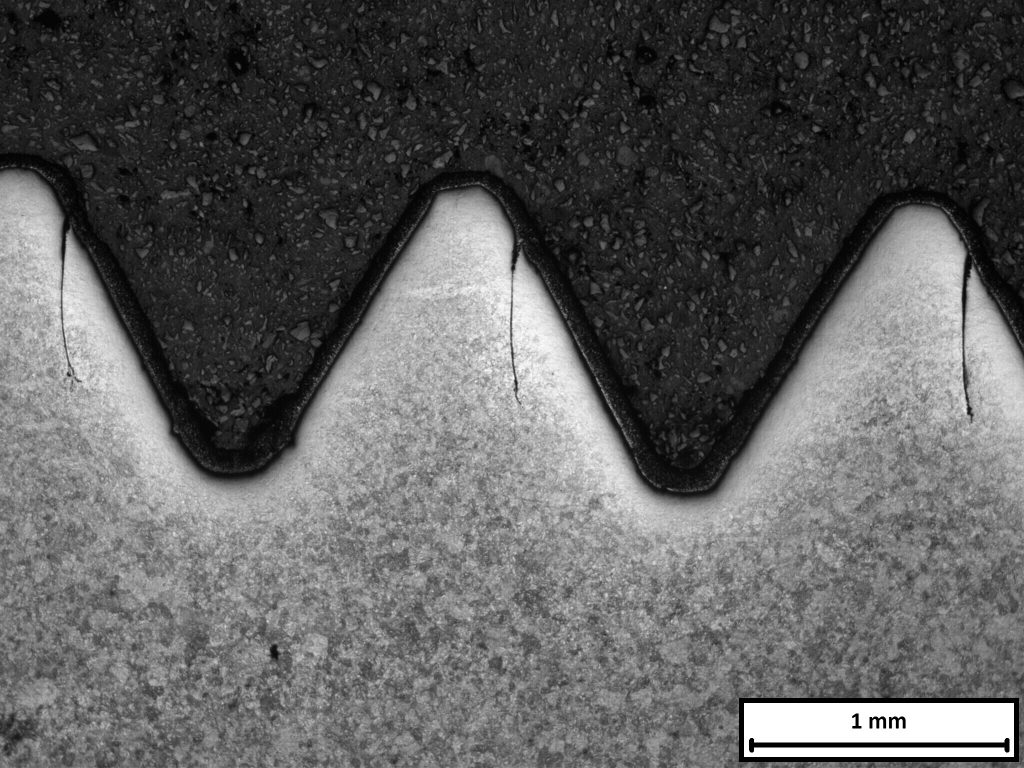

Axial section of screw showing deep cracks on thread flanks
